Elmo XP-series, LX-series, F-1 – 4P41767 Worm Gear (PP-0227)

 41,00

Elmo XP-series, LX-series, F-1 – 4P41767 Worm Gear (PP-0227)

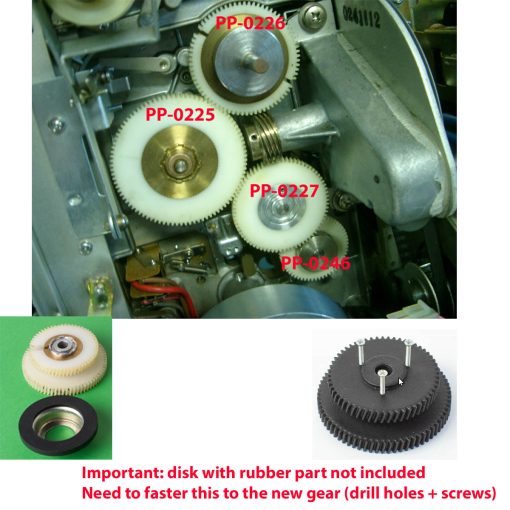

Important: This gear is delivered without the disc and rubber ring!
You have to attach the original disc and rubber ring to this new gear (for example by drilling three holes and fixing it with screws).

The projector will run without the rubber disc. The rubber disc activates the loop-reformer but in normal operation this is not necessary.
It can be done without.

SKU: PP-0227 Categories: , ,

4 in stock

Select delivery location
Description

Elmo XP-series, LX-series, F-1 – Double gear – 55,8 + 45,1 mm (PP-0227)

Important: This gear is delivered without the disc and rubber ring!
You have to attach the original disc and rubber ring to this new gear (for example by drilling three holes and fixing it with screws).

The projector will run without the rubber disc. The rubber disc activates the loop-reformer but in normal operation this is not necessary.
It can be done without.

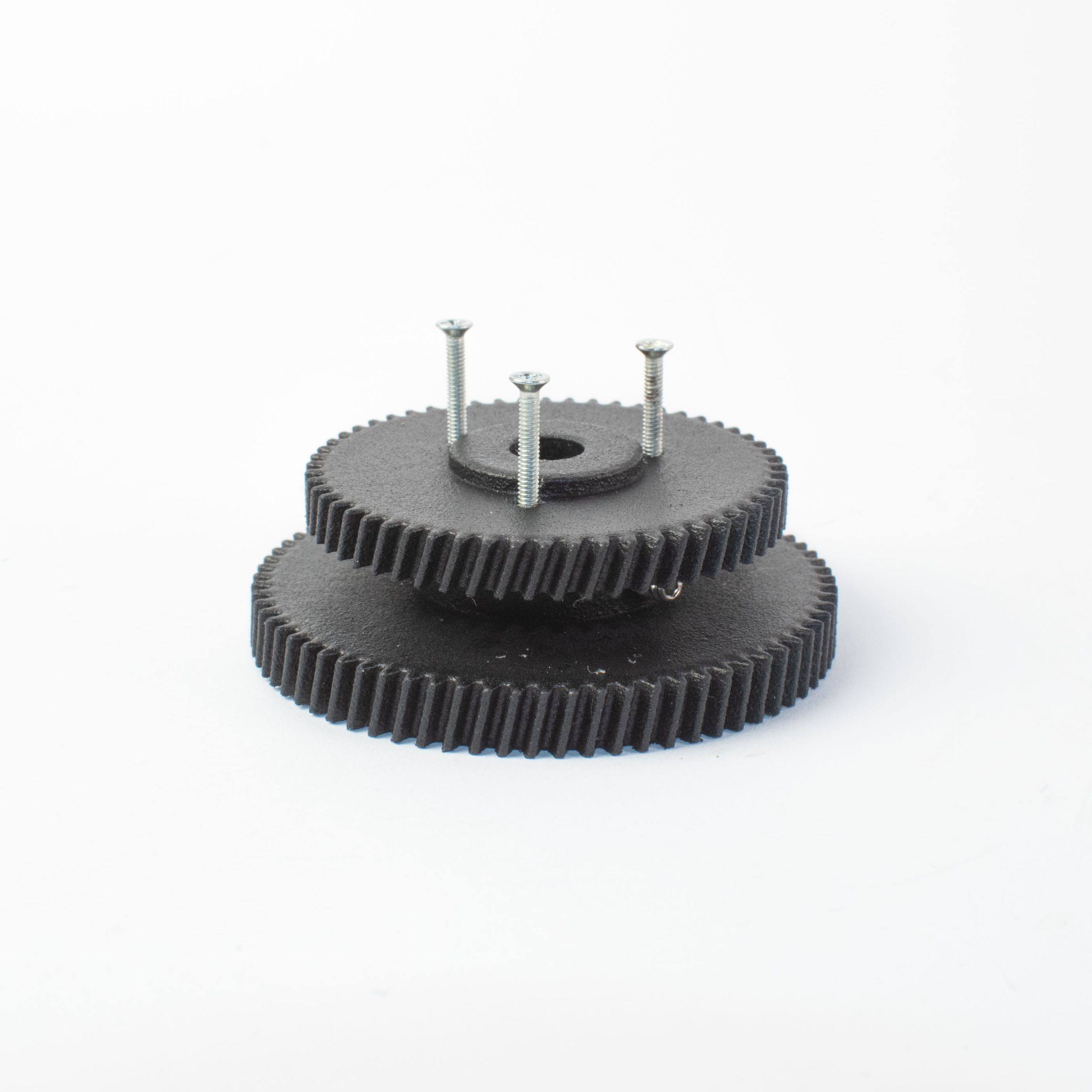

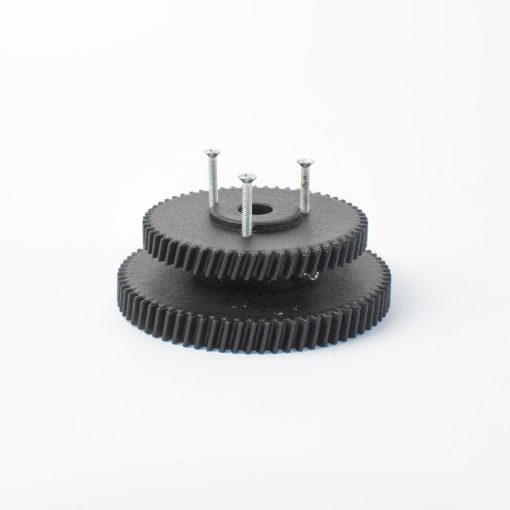

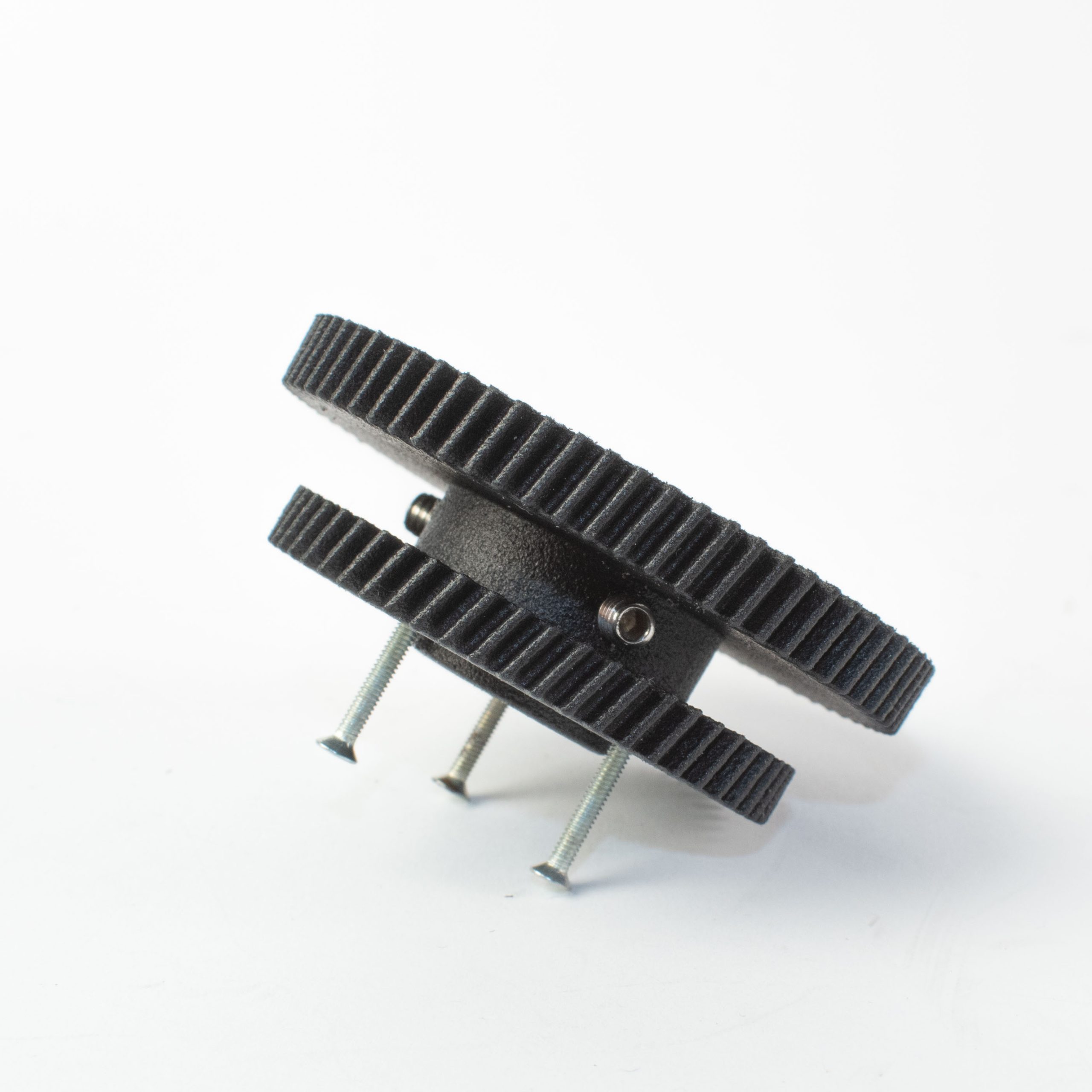

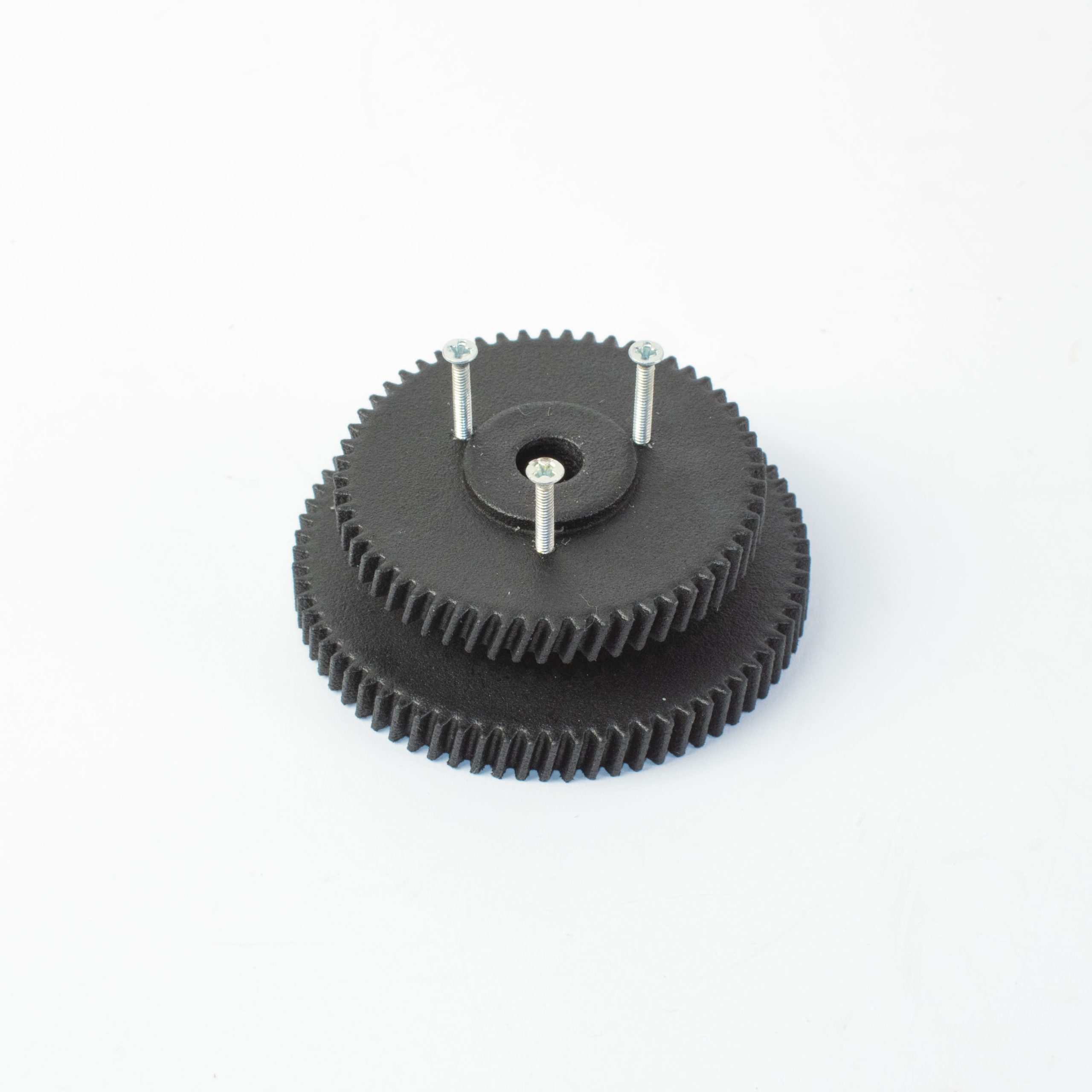

Made as 1 part in solid nylon

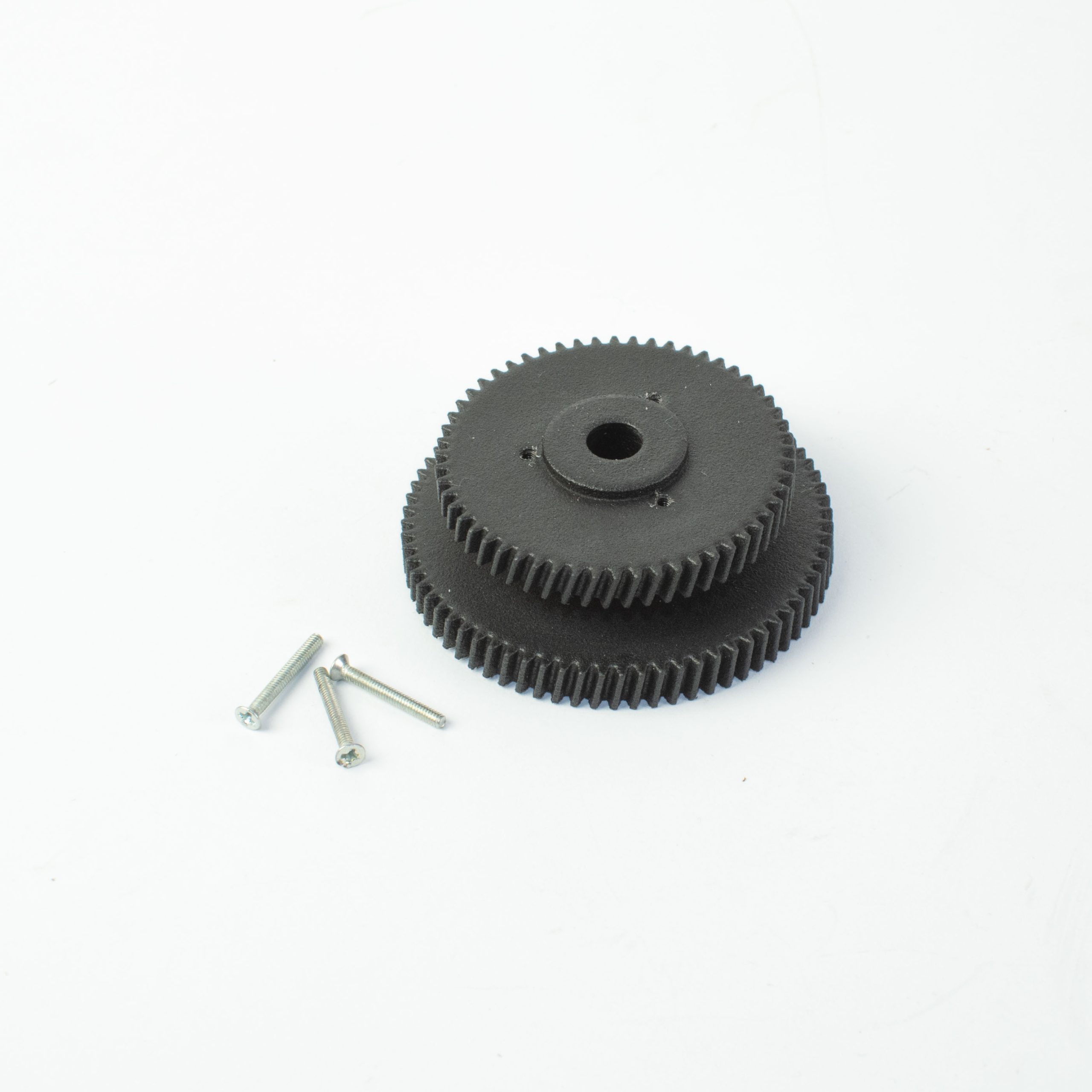

Is delivered with 3 scews

Source: Elmo XP-350 Service Manual:   page  15:  (11) 4P41767 Worm Gear (fig. 10-11)

Dimensions:
– Diameter of gear: 55,8 mm + 45,1 mm
– thickness: 19.2 mm
– diameter hole: 7 mm

Weight: 35 grams

Na het inbouwen, goed invetten met smeermiddel, zoals Molykote G-4500

Designed by Edwin van Eck - Van Eck Video Services

Made in the Netherlands

References:
Additional information
Weight 35 g
Dimensions 6 × 6 × 2 cm
Brand

State

Elmo XP-series, LX-series, F-1 – Double gear – 55,8 + 45,1 mm (PP-0227)

Important: This gear is delivered without the disc and rubber ring!
You have to attach the original disc and rubber ring to this new gear (for example by drilling three holes and fixing it with screws).

The projector will run without the rubber disc. The rubber disc activates the loop-reformer but in normal operation this is not necessary.
It can be done without.

Made as 1 part in solid nylon

Is delivered with 3 scews

Source: Elmo XP-350 Service Manual:   page  15:  (11) 4P41767 Worm Gear (fig. 10-11)

Dimensions:
– Diameter of gear: 55,8 mm + 45,1 mm
– thickness: 19.2 mm
– diameter hole: 7 mm

Weight: 35 grams

Na het inbouwen, goed invetten met smeermiddel, zoals Molykote G-4500

Designed by Edwin van Eck - Van Eck Video Services

Made in the Netherlands

References:
Weight 35 g
Dimensions 6 × 6 × 2 cm
Brand

State
