Arri Arriflex 35BL Gebruikshandleiding, Talen: Engels

U ontvangt de Gebruikshandleiding per E-mail als .PDF Bestand.

Gebruikshandleiding van de Camera: Arri Arriflex 35BL

Aantal pagina’s: 30
Hoge kwaliteit scan

Deze Gebruikshandleiding is geschreven in de volgende taal:
EN – English – Instructions for Use / Guidebook / Instruction Booklet / owner’s manual / operating instructions

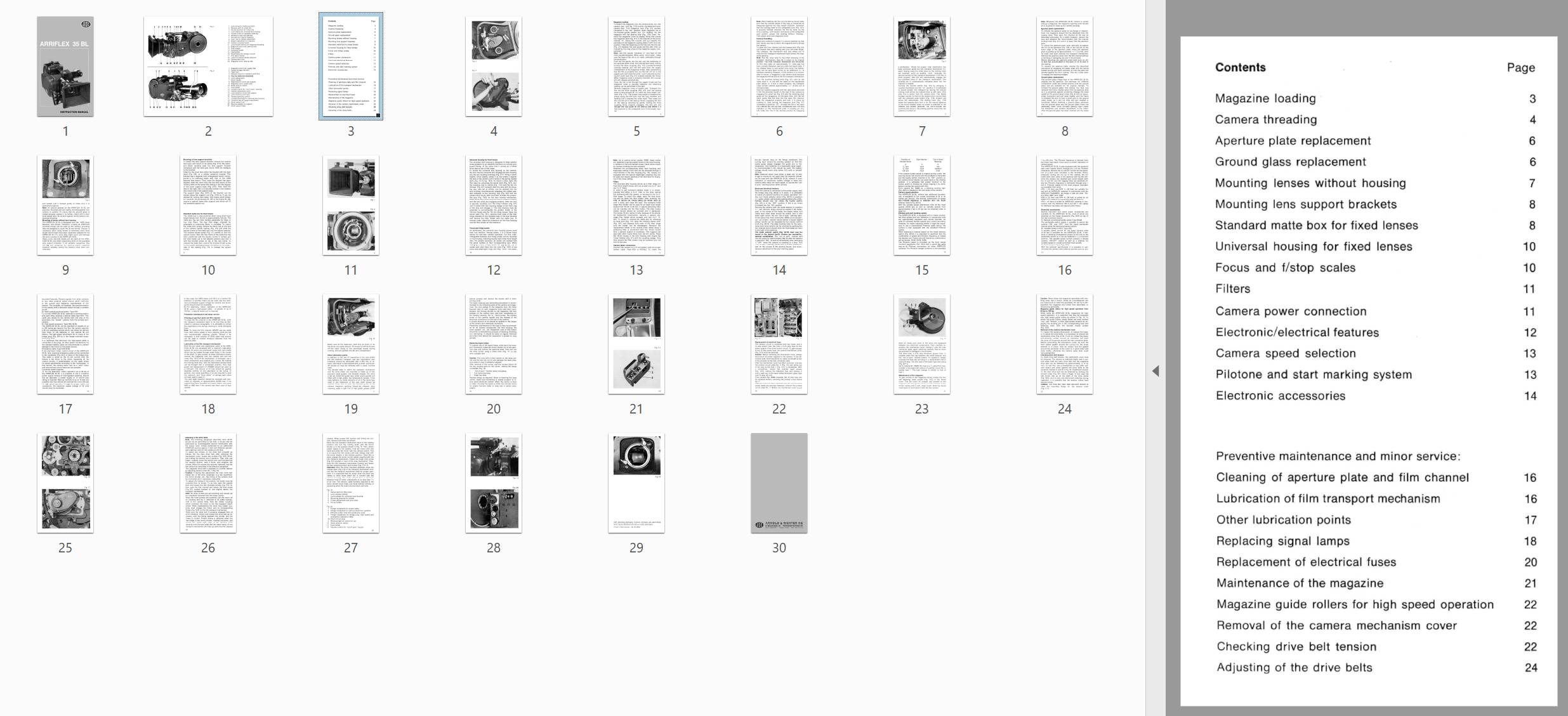

Contents Page

Magazine loading 3
Camera threading 4
Apertur1e plate replacement 6
Ground glass replacement 6
Mounting llenses without housing 7
Mounting lens support brackets 8
Standard matte box for fixed lenses 8
Universal housing for fixed lenses. 10
Focus and f/stop scales 10
Filters 11
Camera power connection 11
Electronic/el1ectrical features 12
Camera speed se!lection 13
Pilotone and start marking- system 13
Electronic accessories 14
Preventive maintenance and minor service:
Cleaning of aperture plate and film channel 16
Lubrication of fiilm transport mechanism 16
Other lubrication points 17
Replacing signal lamps 18
Replacement of electriicall fuses 20
Maintenance of the magaz,ine 2.1
Magazine guide rol l·ers for high speed operation 22
Removal of the camera mechanism cover 22
Checking drive belt tension 22
Adjusting of the drive belts 24
